实现方式

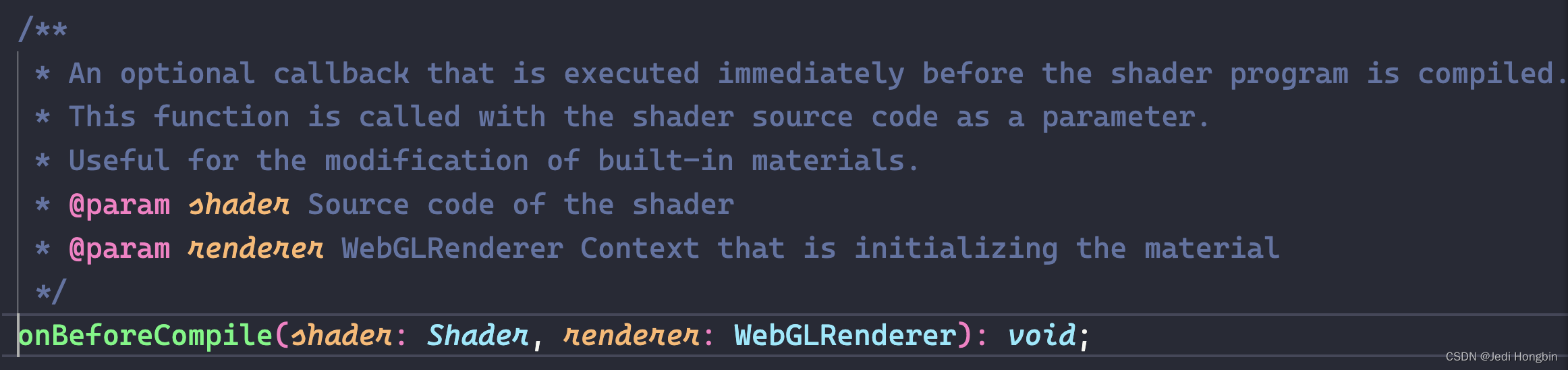

three.js的material提供了一个方法用来修改材质

这个方法第一个参数中有材质的glsl代码，在计算前修改材质的glsl代码 插入自己的代码即可以实现自定义shader并且继承提供类的光线，贴图，物理等能力，不用自己写对应的glsl非常有意思。

以下
封装一个基于THREE.MeshStandardMaterial的材质
通过修改uniform来更改颜色实现上图的效果

调用成果

const cusMaterial = new StandardMaterial({color: 0xccc,uniforms: {time: { value: 0 },},fragmentShader: `gl_FragColor.x += time;
`,
});
const box = new THREE.Mesh(new THREE.BoxGeometry(40, 40, 40, 40, 40, 40),cusMaterial.material
);
scene.add(box);cusMaterial.onRender(() => {cusMaterial.uniforms.time.value = Math.sin(cusMaterial.getElapsedTime());
});

封装类

/** @Author: hongbin* @Date: 2022-12-31 10:53:53* @LastEditors: hongbin* @LastEditTime: 2022-12-31 20:41:09* @Description:修改THREE提供的material加入动画 且具有材质的灯光，贴图，物理渲染等*/
import * as THREE from "three";interface IStandardMaterial extends THREE.MeshStandardMaterialParameters {uniforms?: Record<string, THREE.IUniform<any>>;varyings?: Record<string, { type: string }>;vertexShader?: string;fragmentShader?: string;
}/*** 检测uniform的类型*/
function checkType(key: string, value: THREE.IUniform<any>) {let type = "";switch (typeof value.value) {case "number":type = "float";break;case "object":if (value.value.isVector3 || value.value.isColor) {type = "vec3";break;} else if (value.value.isVector2) {type = "vec2";break;}throw new Error(`无法分辨${key}的类型`);default:throw new Error(`无法分辨${key}的类型`);}return type;
}/*** 生成uniform声明字符串 并且添加uniform*/
function genUniformsStr(uniforms: IStandardMaterial["uniforms"],shader: THREE.Shader
) {let uniformStr = "";//添加uniformsfor (const [key, value] of Object.entries(uniforms ?? {})) {//确保不破坏已有的uniformif (shader.uniforms[key]) {throw new Error(`${key}已在uniforms中`);}shader.uniforms[key] = uniforms![key];//生成uniform 声明// const v = new THREE.Vector3();let type = checkType(key, value);uniformStr += `uniform ${type} ${key};`;}return uniformStr;
}/*** 生成varying声明字符串*/
function genVaryingStr(varyings: IStandardMaterial["varyings"]) {let str = "";for (const [key, value] of Object.entries(varyings ?? {})) {str += `varying ${value.type} ${key};`;}return str;
}const handleShader =(uniforms: IStandardMaterial["uniforms"],varyings: IStandardMaterial["varyings"],vertexShader: IStandardMaterial["vertexShader"],fragmentShader: IStandardMaterial["fragmentShader"]) =>(shader: THREE.Shader) => {// console.log(shader.uniforms);let uniformStr = genUniformsStr(uniforms, shader);let varyingStr = genVaryingStr(varyings);//顶点着色器插入uniforms 和 varyingshader.vertexShader = shader.vertexShader.replace("#include <common>",`${uniformStr}${varyingStr}#include <common>`);//片元着色器插入uniforms 和 varyingshader.fragmentShader = shader.fragmentShader.replace("#include <common>",`${uniformStr}${varyingStr}#include <common>`);// 着色器运算代码vertexShader &&(shader.vertexShader = shader.vertexShader.replace("#include <fog_vertex>",`#include <fog_vertex>${vertexShader}`));fragmentShader &&(shader.fragmentShader = shader.fragmentShader.replace("#include <dithering_fragment>",`#include <dithering_fragment>${fragmentShader}`));// console.log(shader.vertexShader);// console.log(shader.fragmentShader);};/*** 自定义标准材质*/
export class StandardMaterial {uniforms: Record<string, THREE.IUniform<any>> | undefined;material: THREE.MeshStandardMaterial;clock = new THREE.Clock();constructor(parameters: IStandardMaterial = {}) {const { uniforms, varyings, vertexShader, fragmentShader, ...params } =parameters;const material = new THREE.MeshStandardMaterial(params);material.onBeforeCompile = handleShader(uniforms,varyings,vertexShader,fragmentShader);this.uniforms = uniforms;this.material = material;}getDelta() {return this.clock.getDelta();}getElapsedTime() {return this.clock.getElapsedTime();}onRender(call: VoidFunction) {//@ts-ignorethis.material.onBeforeRender = call;}
}

参考

调整材质
