参考资料

• https://cloud.tencent.com/developer/article/1776213

基础概念

api gateway 的必要性

What is API gateway really all about? Java Brains - Brain Bytes

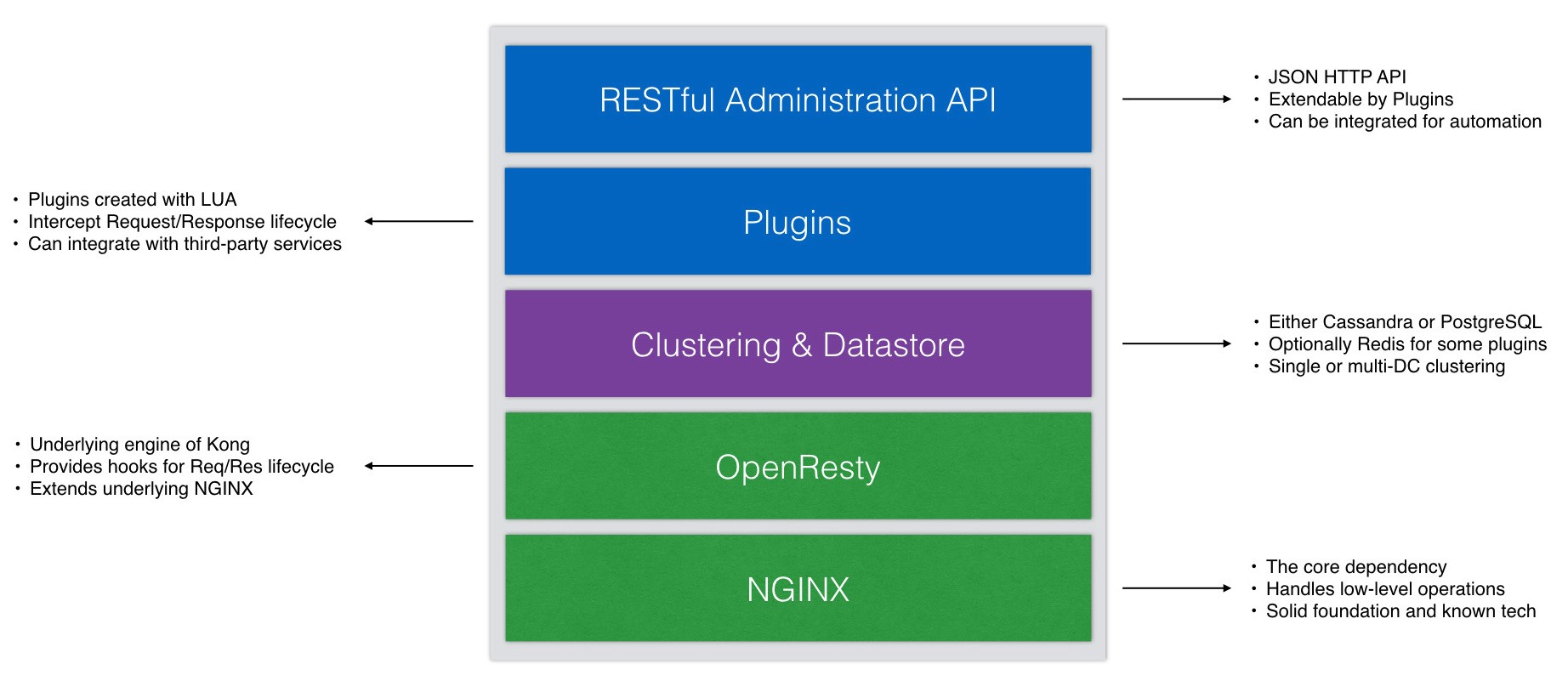

Kong 是由 Mashape 开源的一款具有高性能、高可用特点的云原生架构下的分布式 API 网关。Kong 是一个在 Nginx 中运行的 Lua 应用程序

Kong 通过插件形式，提供了微服务网关的各项功能，包括负载均衡、日志、授权、限流、转发等等

• Kong，基于 Nginx 来实现 Api Gateway 基本的负载均衡、反向代理等功能
• OpenResty，一个基于 Nginx 的库，它将 Nginx 进行封装，并提供了整个生命周期的 Hook（ 钩子 ），使得开发者可以通过 Lua 脚本对 Nginx 进行插件化管理
• Kong 使用PostgreSQL 或 Cassandra 来对其配置文件进行持久化存储。
• Kong 的插件模型，使用 Lua 脚本来对 Nginx 整个生命周期进行扩展。

使用docker启动kong

在docker-compose中启动kong

docker network create kong-netdocker run -d --name kong-db \--network=kong-net \-p 5432:5432 \-e "POSTGRES_USER=kong" \-e "POSTGRES_DB=kong" \-e "POSTGRES_PASSWORD=passwd" \postgres:9.6docker run --rm --network=kong-net \-e "KONG_DATABASE=postgres" \-e "KONG_PG_HOST=kong-db" \-e "KONG_PG_PASSWORD=passwd" \-e "KONG_PASSWORD=kong" \kong kong migrations bootstrapdocker run -d --name kong --network=kong-net \-e "KONG_DATABASE=postgres" \-e "KONG_PG_HOST=kong-db" \-e "KONG_PG_PASSWORD=passwd" \-e "KONG_PROXY_ACCESS_LOG=/dev/stdout" \-e "KONG_ADMIN_ACCESS_LOG=/dev/stdout" \-e "KONG_PROXY_ERROR_LOG=/dev/stderr" \-e "KONG_ADMIN_ERROR_LOG=/dev/stderr" \-e "KONG_ADMIN_LISTEN=0.0.0.0:8001, 0.0.0.0:8444 ssl" \-p 80:8000 \-p 443:8443 \-p 8001:8001 \-p 8444:8444 \kong

可以使用图形化管理工具konga，便于网关管理

使用docker-compose启动kong

使用docker-compose启动更为方便

version: "3.8"networks:kong-net:external: trueservices: postgres:image: postgres:9.6ports:- "5432:5432"environment:- POSTGRES_USER=kong- POSTGRES_DB=kong- POSTGRES_PASSWORD=kongpasswdnetworks:- kong-netkong-migration:image: kongcommand: "kong migrations bootstrap"restart: on-failurelinks:- "postgres:postgres"environment:- "KONG_DATABASE=postgres"- "KONG_PG_USER=kong"- "KONG_PG_DATABASE=kong"- "KONG_PG_HOST=postgres"- "KONG_PG_PASSWORD=kongpasswd"- "KONG_CASSANDRA_CONTACT_POINTS=postgres"depends_on:- postgresnetworks:- kong-netkong:image: kongrestart: alwayslinks:- "postgres:postgres"environment:- "KONG_DATABASE=postgres"- "KONG_PG_USER=kong"- "KONG_PG_DATABASE=kong"- "KONG_PG_HOST=postgres"- "KONG_PG_PASSWORD=kongpasswd"- "KONG_CASSANDRA_CONTACT_POINTS=postgres"- "KONG_PROXY_LISTEN=0.0.0.0:8000"- "KONG_PROXY_LISTEN_SSL=0.0.0.0:8443"- "KONG_ADMIN_LISTEN=0.0.0.0:8001"depends_on:- postgres- kong-migrationports:- 8000:8000- 8001:8001- 8443:8443- 8444:8444networks:- kong-netkonga-prepare:image: pantsel/kongacommand: "-c prepare -a postgres -u postgresql://kong:kongpasswd@postgres:5432/kong"restart: on-failureenvironment:- "DB_ADAPTER=postgres"- "DB_HOST=postgres"- "DB_PORT=5432"- "DB_USER=kong"- "DB_PASSWORD=kongpasswd"- "DB_DATABASE=kong"- "NODE_ENV=development"links:- "postgres:postgres"depends_on:- kong- postgres- kong-migrationports:- "1337:1337"networks:- kong-netkonga:image: pantsel/kongarestart: alwaysenvironment:- "DB_ADAPTER=postgres"- "DB_HOST=postgres"- "DB_PORT=5432"- "DB_USER=kong"- "DB_PASSWORD=kongpasswd"- "DB_DATABASE=kong"- "NODE_ENV=development"links:- "postgres:postgres"depends_on:- kong- postgres- kong-migration- konga-prepareports:- "1337:1337"networks:- kong-net

查看相关配置

查看数据库，可见已经迁移成功

# psql -U kong -d kong -h 127.0.0.1 -p 5432
kong=# \c kong
You are now connected to database "kong" as user "kong".
kong=# \dList of relationsSchema |                 Name                 |   Type   | Owner
--------+--------------------------------------+----------+-------public | acls                                 | table    | kongpublic | acme_storage                         | table    | kongpublic | basicauth_credentials                | table    | kongpublic | ca_certificates                      | table    | kongpublic | certificates                         | table    | kongpublic | cluster_events                       | table    | kongpublic | clustering_data_planes               | table    | kongpublic | consumers                            | table    | kongpublic | hmacauth_credentials                 | table    | kongpublic | jwt_secrets                          | table    | kongpublic | key_sets                             | table    | kongpublic | keyauth_credentials                  | table    | kongpublic | keys                                 | table    | kongpublic | konga_api_health_checks              | table    | kongpublic | konga_api_health_checks_id_seq       | sequence | kong

查看kong镜像的入口文件如下

• /usr/local/share/lua/5.1/kong/templates/kong_defaults.lua路径为所有kong选项

• /usr/local/kong为kong的根目录

• 最终使用/usr/local/openresty/nginx/sbin/nginx命令启动nginx服务器

#!/usr/bin/env bash
...
if [[ "$1" == "kong" ]]; thenall_kong_options="/usr/local/share/lua/5.1/kong/templates/kong_defaults.lua"...file_env KONG_PASSWORDPREFIX=${KONG_PREFIX:=/usr/local/kong}if [[ "$2" == "docker-start" ]]; thenkong prepare -p "$PREFIX" "$@"..。二设置日志路径exec /usr/local/openresty/nginx/sbin/nginx \-p "$PREFIX" \-c nginx.conffi
fi
exec "$@"

配置端口的作用

• 8000：监听来自客户端的HTTP请求的，并将此请求转发到上游服务
• 8443：监听HTTPS的请求，并不会产生转发行为
• 8001：管理员的配置端口
• 8444：管理员监听HTTPS请求的端口

创建服务

启动kong之后直接访问，目前还没有服务

$ curl -i -X GET --url http://172.31.18.4:8001/services
HTTP/1.1 200 OK
Date: Thu, 23 Feb 2023 06:34:45 GMT
Content-Type: application/json; charset=utf-8
Connection: keep-alive
Access-Control-Allow-Origin: *
Content-Length: 23
X-Kong-Admin-Latency: 32
Server: kong/3.1.1{"data":[],"next":null}

使用api接口创建一个服务

curl -i -X POST \--url http://172.31.18.4:8001/services/ \--data 'name=example-service' \--data 'url=https://www.example.com/'
resp:
{"path": "/","created_at": 1680412179,"updated_at": 1680412179,"enabled": true,"port": 443,"name": "example-service","client_certificate": null,"write_timeout": 60000,"id": "3590d0c6-fe30-4367-b7e0-d4fd2e202445","tls_verify": null,"tags": null,"connect_timeout": 60000,"tls_verify_depth": null,"read_timeout": 60000,"ca_certificates": null,"protocol": "https","retries": 5,"host": "www.example.com"
}curl -ik -X POST \--url http://172.31.18.4:8001/services/example-service/routes \--data 'hosts[]=example.com' \--data 'paths[]=/api/example'resp:
{"response_buffering": true,"paths": ["/api/example"],"methods": null,"https_redirect_status_code": 426,"destinations": null,"hosts": ["example.com"],"created_at": 1680412226,"updated_at": 1680412226,"regex_priority": 0,"name": null,"headers": null,"id": "b6d7fddd-8e84-4f75-9443-8fd7b5bf9995","snis": null,"service": {"id": "3590d0c6-fe30-4367-b7e0-d4fd2e202445"},"protocols": ["http","https"],"strip_path": true,"path_handling": "v0","tags": null,"sources": null,"preserve_host": false,"request_buffering": true
}

访问服务

$ curl -k http://172.31.18.4:8000/api/example --header 'Host: example.com'
<!doctype html>
<html>
<head><title>Example Domain</title>
</head><body>
<div><h1>Example Domain</h1><p>This domain is for use in illustrative examples in documents. You may use thisdomain in literature without prior coordination or asking for permission.</p><p><a href="https://www.iana.org/domains/example">More information...</a></p>
</div>
</body>
</html>

图形化工具

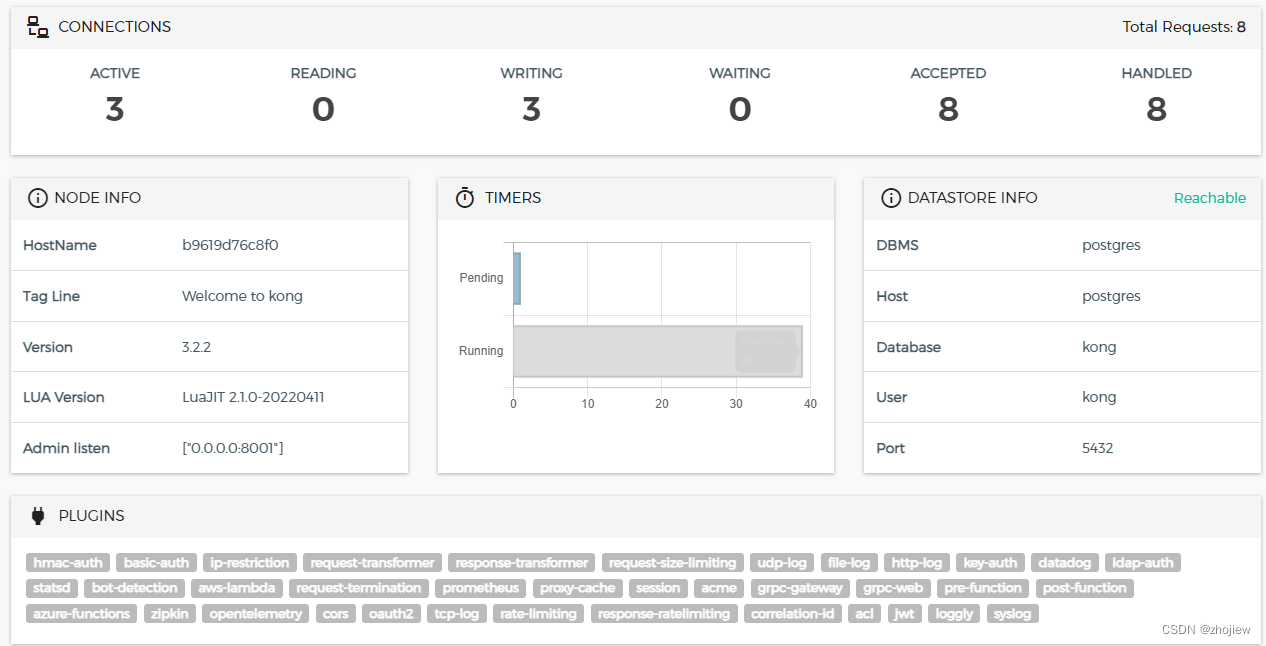

kong提供了ui工具管理网关，连接konga查看

https://cloud.tencent.com/developer/article/1777423?from=article.detail.1776213&areaSource=106000.2&traceId=NcRPy8q4uvJPQQ3HHXiC5

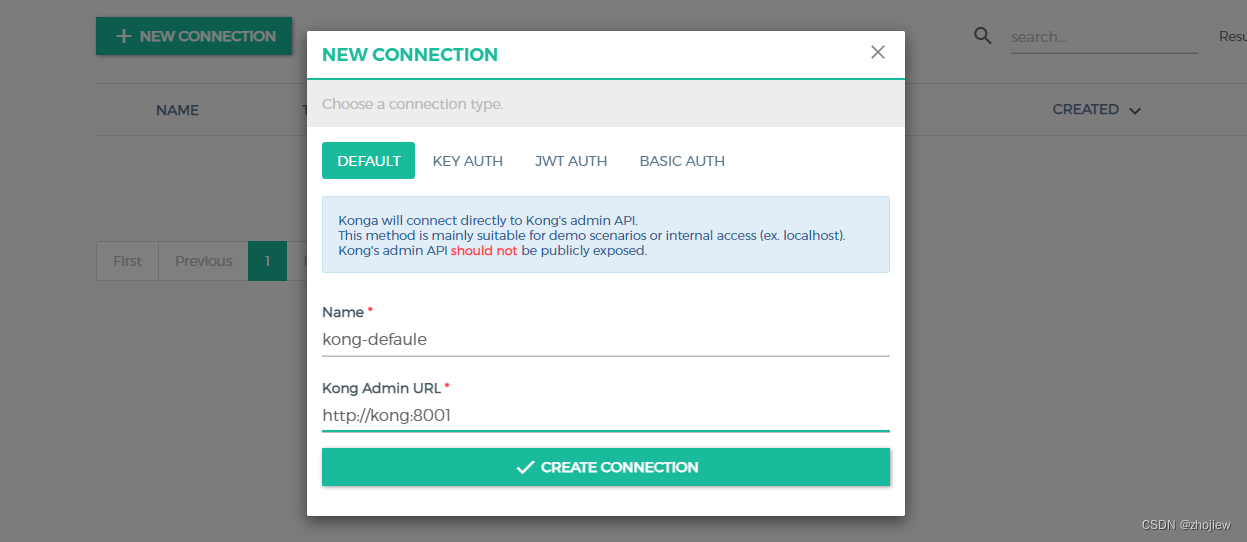

添加kong连接

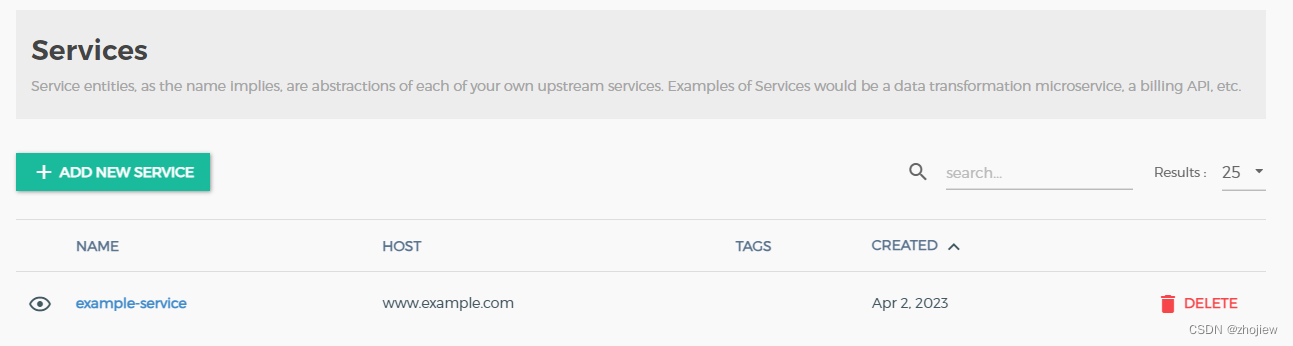

刚才创建的service

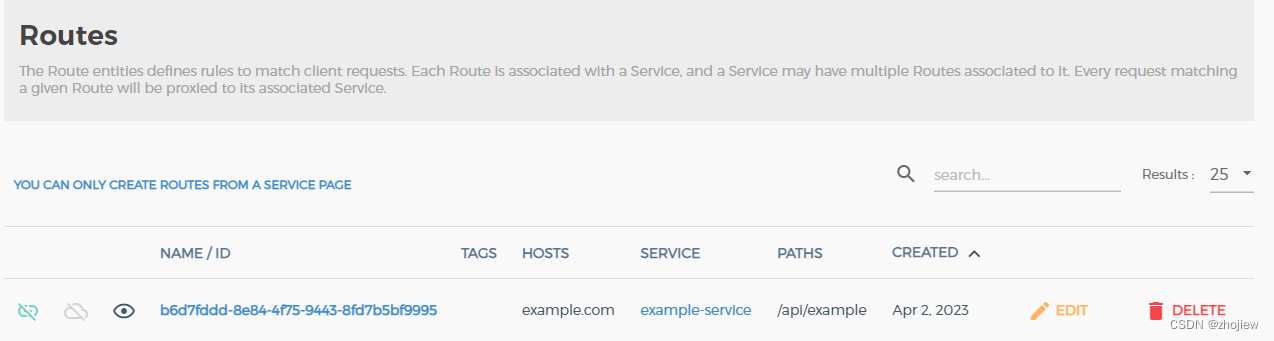

查看路由

之后的具体使用还有很多，用到再说

• 身份验证
• 安全管理
• 流量控制

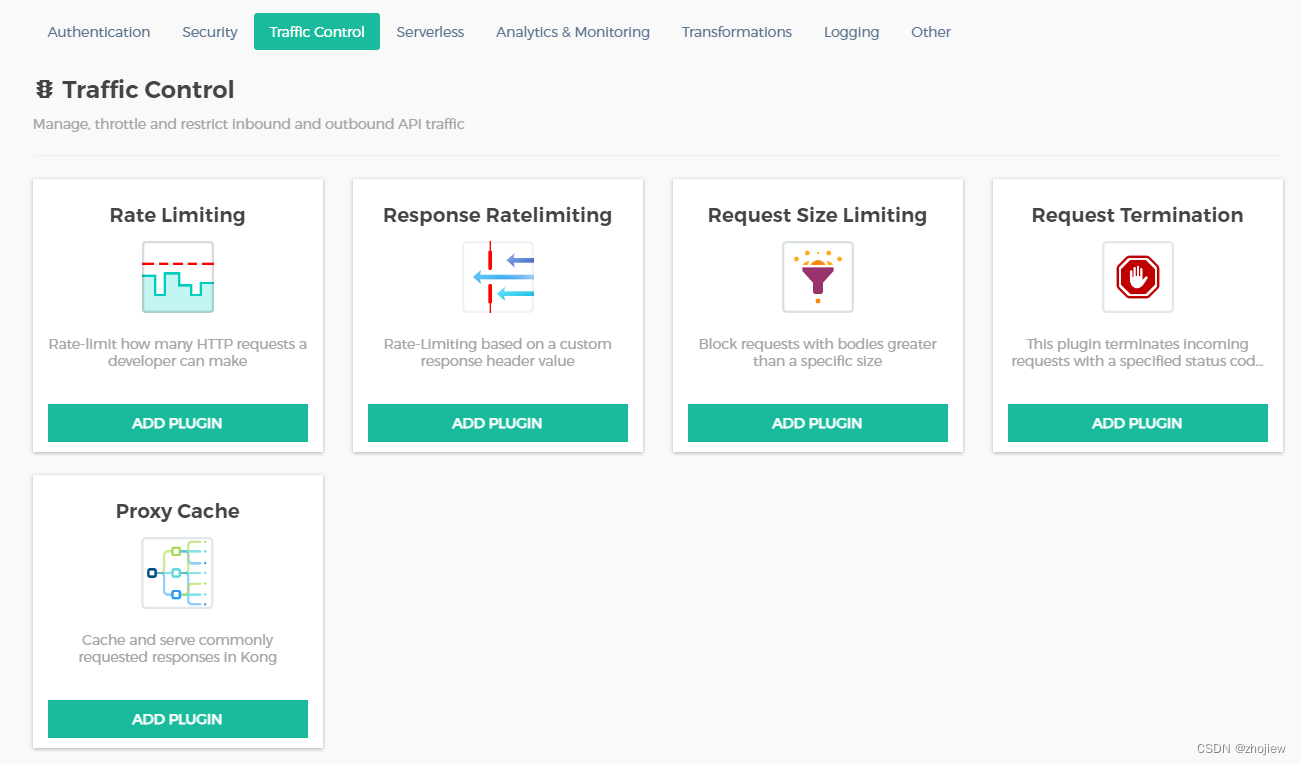

尤其是流控，可以进行请求数量，请求大小，请求速率，终止请求等流控插件的配置

https://cloud.tencent.com/developer/article/1781923?from=article.detail.1776213&areaSource=106000.6&traceId=K8QRo3Q1D4UZRT4Zktq1B
